PADP 7120 Data Applications in PA

class: center, middle, inverse, title-slide

.title[
# PADP 7120 Data Applications in PA
]
.subtitle[
## Causation
]
.author[
### Alex Combs
]
.institute[
### UGA | SPIA | PADP
]
.date[
### Last updated: March 11, 2024
]

---

# Outline

- Overview of research design
  - Counterfactual
  - Internal validity
  - External validity
  - Experimental, quasi-experimental, non-experimental

- Criteria to claim that `$x$` *causes* a change in `$y$`

- Systematic process to identify omitted variable bias (endogeneity) and what can be done about it

---
# Potential outcomes

- A causal effect is a comparison of two potential outcomes

- The outcome that we observe in the presence of the event

- **Counterfactual:** The outcome we would have observed had the event not happened

---
# Potential outcomes

- Half of the data we need to observe causation is missing

- We observe the outcome for those who received some treatment

- We observe the outcome for those who did not receive the treatment

- Cannot observe the outcome for the treated as if they had NOT been treated

- Cannot observe the outcome for the untreated as if they HAD been treated

---
# The challenge of counterfactual

- All we can do is compare outcomes between observed groups (treated and untreated). This can take several forms.

- **Randomize** treatment so nothing else differs between treated and untreated groups

--

- **Quasi-experimental** methods that use a feature of the treatment that allows us to claim it is as good as randomized

--

- **Non-experimental:** Controlling for all the necessary variables to claim there is no relevant difference between treated and untreated (least credible)

---
# Credible Analysis

---
# Internal validity

**Internal validity:** the credibility of the theoretical assumptions applied and the causal connection established between the cause (policy, program, treatment) and an effect

- Does a change in `$x$` cause a change in `$y$`?

- Is the estimate biased? Is our estimate systematically higher or lower than the truth?

---
# Internal validity

- A criminal justice nonprofit explores potential factors that affect the likelihood of recidivism

`$$ReOffense = \beta_0 + \beta_1Age + \beta_2Sex + \epsilon$$`

|Variable  | Estimates|
|:---------|---------:|
|Intercept |     1.370|
|Age       |    -0.036|
|Sex       |     0.250|

- Internal validity concerns whether there is a credible theory why these factors would have an impact and if estimates are accurate or biased. If biased, to what extent does it limit our ability to make useful conclusions?

---
# Criteria for causation

1. Correlation between `$x$` and `$y$` -- as `$x$` changes, `$y$` must also tend to change

2. Temporal precedence -- `$x$` must occur before `$y$`

3. No plausible rival or alternative explanations -- no other variable `$z$` can influence the change in `$y$` we attribute to `$x$`

---
# Correlation between X and Y

- If you run a hypothesis test and the estimate is statistically significant (we haven't covered this yet), you have established credible non-random correlation

- But many things correlate that share no causal relationship

---
# Temporal Precedence

- Cause must occur before its effect

- Easiest to claim for discrete events with a clear pre and post
  - Marijuana legalization on health outcomes
  - Child tax credit expansion on child poverty

- Without a clear pre and post period, harder to eliminate **reverse causality**
  - Crime rates and police funding
  - GDP and life expectancy

---
# No plausible alternative explanation

- No other variable `$z$` can influence the change in `$y$` we attribute to `$x$`

- Employment rate among those who participated in a job training program is 75% compared to 40% among those who did not participate.

- Conclusion: Job training programs increase the likelihood of employment by 35 percentage points.

- Plausible alternatives?

---
class: inverse, center, middle

# Directed Acyclical Graphs (DAGS)

---
# DAGS

- Visual representation of causal pathways

- Forces us to consider our assumptions

- Allows us to evaluate our model and our ability to claim causation, especially using a **non-experimental** approach

---
# Regression and DAGS

- Behind every regression is a DAG

`$$Happiness=\beta_0+\beta_1Age+\beta_2Income+\epsilon$$`

---
# Backdoor path

- `$Z$` is a **confounder**

- Leads to **omitted variable bias** (OVB)

---
# Close the backdoor

- Our goal is to close all backdoor paths between `$X$` and `$Y$`

- Three ways to close a backdoor path

1. Control for the **confounder** in our regression

---
# Close the backdoor

.pull-left[
`$$Y=\beta_0+\beta_1X+\epsilon$$`

- Backdoor open - OVB
]

.pull-right[
`$$Y=\beta_0+\beta_1X+\beta_2Z+\epsilon$$`

- Backdoor closed - No OVB
]

---
# Close the backdoor

- Three ways to close a backdoor path

1. Control for the **confounder**

2. Control for any variable along the backdoor path

---
# Close the backdoor

.center[
`$$X \rightarrow Y$$`
`$$X \leftarrow Z \rightarrow K \rightarrow Y$$`
]

.pull-left[
`$$Y=\beta_0+\beta_1X+\epsilon$$`

- Backdoor open; OVB
]

.pull-right[
`$$Y=\beta_0+\beta_1X+\beta_2K+\epsilon$$`

- Backdoor closed/blocked; no OVB
]

---
# Close the backdoor

- Three ways to close a backdoor path

1. Control for the **confounder**

2. Control for any variable along the backdoor path

3. Identify a **collider** variable that closes the backdoor path

---
# Collider variable

- `$Z$` is a **collider** in this case

- Colliders close backdoors

---
# Close the backdoor

.center[
`$X \rightarrow Y$`

`$X \leftarrow Z \rightarrow K \leftarrow Y$`
]

.pull-left[
`$$Y=\beta_0+\beta_1X+\epsilon$$`
`$$Y=\beta_0+\beta_1X+\beta_2Z+\epsilon$$`
`$$Y=\beta_0+\beta_1X+\beta_2Z+\beta_3K+\epsilon$$`
- All are fine; backdoor closed
]

.pull-right[
`$$Y=\beta_0+\beta_1X+\beta_2K+\epsilon$$`

- Backdoor now open; OVB

- Also known as **bad control**
]

---
# The error term and OVB

.center[

`$$Y=\beta_0+\beta_1X+\epsilon$$`

]

- If true model was left DAG, our estimate `$b_1$` is *not* solely due to `$X$`, but rather unobserved factors contained in `$\epsilon$`

- Referred to as **endogeneity** or "X is endogenous"

---
# Error term and OVB

.center[
`$$Happiness=\beta_0+\beta_1Age+\beta_2Income+\epsilon$$`]

.pull-left[
<img src="lectures_files/dag15.png" width="843" style="display: block; margin: auto;" />
]

.pull-right[
- What variables might the error term contain?

- Do any of our omitted variables also affect age or income?
]

---
class: inverse, center, middle

# Using DAGS

---
# Using DAGS

1. Begin with the direct path between `$X$` and `$Y$` based on your research question

2. Identify other factors that affect `$X$` and/or `$Y$`, adding them to the DAG accordingly

3. List all paths starting from `$X$` to `$Y$`

4. Identify any backdoor paths and determine how to close them

---
# Using DAGS

- Suppose we want to know if college, `$C$`, increases earnings, `$Y$`?

- `$C \rightarrow Y$`

`$$Y=\beta_0+\beta_1C+\epsilon$$`

- Now we should identify any other factors that affect earnings and/or going to college

- Suppose we identify three factors:
  - Parent's education `$PE$`
  - Family income `$I$`
  - Natural aptitude of parents/child `$A$`

---
# Using DAGS

- Now we think of the relationships between all of our factors and draw the corresponding DAG

- Suppose we settle on the following DAG

- Next step is to list all paths we can trace between `$C$` and `$Y$`, drawing the arrows according to their direction in our diagram

---
# Using DAGS

1. `$C \rightarrow Y$` (the causal effect of college on earnings)

2. `$C \leftarrow I \rightarrow Y$` (backdoor 1)

3. `$C \leftarrow PE \rightarrow I \rightarrow Y$` (backdoor 2)

4. `$C \leftarrow A \rightarrow PE \rightarrow I \rightarrow Y$` (backdoor3)

- Any colliders? No. We have three open backdoor paths. Systematic non-causal correlations between `$C$` and `$Y$`

---
# Using DAGS

1. `$C \rightarrow Y$` (the causal effect of college on earnings)
2. `$C \leftarrow I \rightarrow Y$` (backdoor 1)
3. `$C \leftarrow PE \rightarrow I \rightarrow Y$` (backdoor 2)
4. `$C \leftarrow A \rightarrow PE \rightarrow I \rightarrow Y$` (backdoor3)

- Next step is to identify the minimum set of control variables needed to close all backdoors.

- Controlling for family income `$I$` closes all three backdoors

.center[
`$$Y=\beta_0+\beta_1C+\beta_2I+\epsilon$$`
]

- If we believe this DAG, then we now have the causal effect of college on earnings.

---
# Assumptions & alternatives

- Two key assumptions this DAG makes

1. Other than natural aptitude `$A$`, no other *unobserved* factors affect `$C$`

2. Natural aptitude does not directly affect earnings `$Y$`

---
# Assumptions & alternatives

.pull-left[
1. `$C \rightarrow Y$`
2. `$C \leftarrow I \rightarrow Y$`
3. `$C \leftarrow PE \rightarrow I \rightarrow Y$`
4. `$C \leftarrow A \rightarrow PE \rightarrow I \rightarrow Y$`
5. `$C \leftarrow A \rightarrow Y$`
6. `$C \leftarrow PE \leftarrow A \rightarrow Y$`
7. `$C \leftarrow I \leftarrow PE \leftarrow A \rightarrow Y$`
]

.pull-right[

- Controlling for `$I$` closes 2, 3, 4, & 7

- Controlling for `$PE$` closes 6

- Currently no way to close 5; omitted variable bias
]

---
# Direction of OVB

- Suppose you or someone else has identified an omitted variable that causes bias.

- All is not necessarily lost. Results may still be useful.

- If influence of `$Z$` is in same direction: bias is positive
- If influence of `$Z$` is in opposite directions: bias is negative

- Key question: Is the bias pushing my result toward 0 or away from 0?

---
# Recap

- Is my claim about the relationship between a cause and effect credible? Can I claim there is no OVB?

- If so, internally valid. Now we can consider **external validity**.

---
# External validity

- **External validity (generalizability):** can results be applied beyond the subjects or context included in the analysis?

- Are those in my sample representative of the population? Did the program select or recipients self-select in unrepresentative ways?

- Are there reasons to suspect location or time matter and results may not apply elsewhere or at later times?

- If you cannot claim sample represents population, possible you can claim sample represents a subset of the population that is larger than the sample.

- Example: Effect of job training on participants instead of any unemployed person. Known as **treatment on the treated**.

---
# Causal inference models

- Random assignment breaks any OVB from the error term

- Random assignment is often difficult to achieve in social sciences

- There are quasi-experimental regression techniques that arguably achieve the same break from the error term as if random
  - Difference-in-differences, regression discontinuity, instrumental variables, synthetic control, propensity score matching

---
class: inverse, center, middle

# Supplemtary Slides: Collider Bias Revisited

---
# Collider bias

- Collider bias can occur in two ways:

- Controlling for a collider in our regression that opens a backdoor path

- Using a sample where observations are selected based on a collider variable

---
# Seeing collider bias

| Treatment| Outcome| Collider|
|---------:|-------:|--------:|
|         0|      99|      993|
|         0|     101|     1007|
|         1|     149|     1542|
|         0|      99|      996|

- Sample includes 2,500 observations

---
# Seeing Collider Bias

`$$Outcome=\beta_0 + \beta_1Treatment + \epsilon$$`

`$$Outcome=\beta_0 + \beta_1Treatment + \beta_2Collider + \epsilon$$`

- These data are made up in a way that the effect of Treatment, `$\beta_1$`, should equal 50.

- The collider does not affect the outcome or the treatment. The outcome and treatment affects the collider.

`$$Treatment \rightarrow Collider \leftarrow Outcome$$`

---
# Seeing collider bias

```r
valid <- lm(Outcome ~ Treatment, data = collider_bias)
biased <- lm(Outcome ~ Treatment + Collider, data = collider_bias)
```

.pull-left[

|term      | estimate|
|:---------|--------:|
|intercept |   100.01|
|Treatment |    49.93|
]

.pull-right[

|term      | estimate|
|:---------|--------:|
|intercept |     0.99|
|Treatment |    -4.45|
|Collider  |     0.10|
]

- Coefficient for `$X$` should be 50.

- Because `$Treatment \rightarrow Collider \leftarrow Outcome$`, controlling for Collider introduces bias

---
# Collider bias: bad sample

- Suppose a nonprofit that works with at-risk youth wants to understand the effect of school absences on grades. It only has access to data on its own clients.

- Suppose at-risk youth are identified by socioeconomic status, GPA, and absences

---
# Collider bias (2) bad sample

`$$GPA = \beta_0 + \beta_1TotAbsences + \beta_2 SES + \epsilon$$`

.pull-left[

1. `$TA \rightarrow GPA$`
2. `$TA \leftarrow SES \rightarrow GPA$`
3. `$TA \rightarrow AtRisk \leftarrow GPA$`
4. `$TA \leftarrow SES \rightarrow AtRisk \leftarrow GPA$`

]

.pull-right[

- Will our estimate `$b_1$` be unbiased?

- No. Because our sample is selected from `$AtRisk$`; same as controlling for it.

- Selection bias
]

---
# Seeing selection bias

`$Absent \rightarrow AtRisk \leftarrow GPA$`

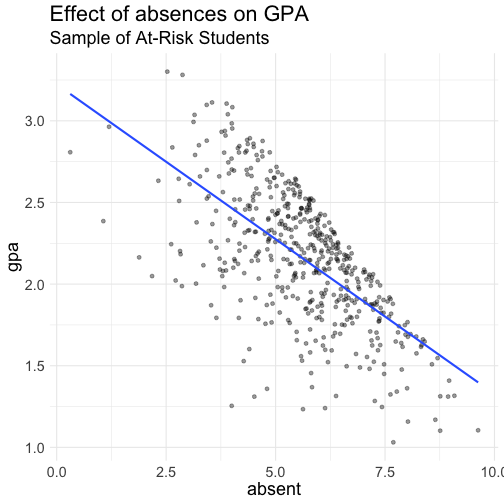

- Suppose our sample only includes those at-risk

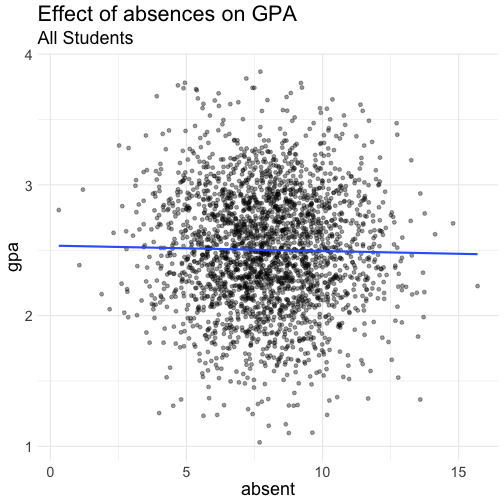

- But we want to estimate the effect of absences on GPA

---
# Seeing selection bias

.pull-left[

![](Causality_files/figure-html/unnamed-chunk-30-1.png)

]

.pull-right[

|term      | estimate|
|:---------|--------:|
|intercept |    3.223|
|absent    |   -0.190|

]

---
# Seeing selection bias

.pull-left[

![](Causality_files/figure-html/unnamed-chunk-32-1.png)

]

.pull-right[

|term      | estimate|
|:---------|--------:|
|intercept |    3.105|
|absent    |   -0.061|

]

---
# Seeing selection bias

.pull-left[

![](Causality_files/figure-html/unnamed-chunk-34-1.png)

]

.pull-right[

|term      | estimate|
|:---------|--------:|
|intercept |    2.536|
|absent    |   -0.004|

]

---
# Seeing Selection Bias
